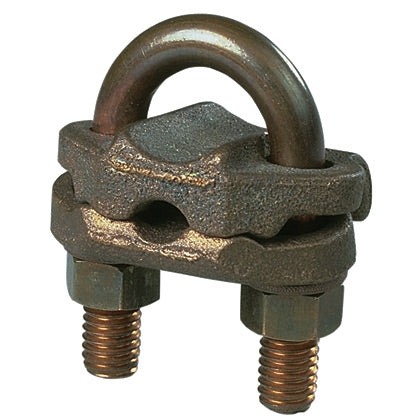

Panduit Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 4" IPS [GPL-56-X]; PAL806

Name: Panduit Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 4" IPS [GPL-56-X]; PAL806
Brand: Panduit
SKU: PAL806
Availability: InStock

Mã kho: PAL806

Mã nhà sản xuất: GPL-56-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-56-X

MÔ TẢ SẢN PHẨM

Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 4" IPS

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	4
Maximum Copper Conductor Size (AWG)	NA
Minimum Copper Conductor Size (AWG SOL)	8
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Iron Pipe Size (In.)	4
Number Of Wires	1
Overall Length (In.)	5.79
Overall Length (mm)	147
Overall Width (In.)	1.47
Overall Width (mm)	37
Overall Height (In.)	6.7
Overall Height (mm)	170
Bolt Diameter (In.)	3/8
Hex Size (In.)	NA
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Surface Treatment	NA
Note	NA
Product Type	Ground Clamp
