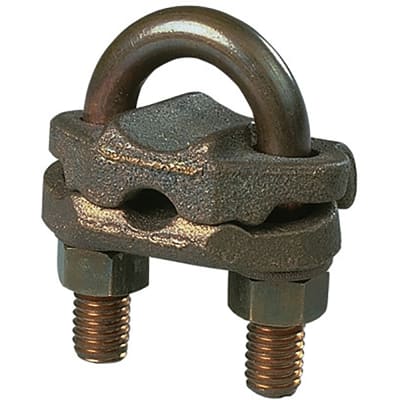

Panduit GPL-6-Q

Panduit Bronze grounding clamp, .365-.575" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-6-Q]; PAL810

Mã kho: PAL810
Mã nhà sản xuất: GPL-6-Q
Tên nhà sản xuất: Panduit
1.929.990₫ - 1.929.990₫
1.929.990₫
1.929.990₫ - 1.929.990₫
1.929.990₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-6-Q

MÔ TẢ SẢN PHẨM

The GPL-6-Q Grounding Clamp, Bronze is used to ground copper conductors parallel or at a right angle to a rod, tube or pipe. The high strength silicon bronze hardware provides long term reliable assembly which accommodates a wide range of pipe, tube, rod, and conductor sizes. Meets cULus 467 listed

_THÔNG SỐ KỸ THUẬT:

Sub Brand StructuredGround™
Material Copper Alloy
Maximum Compatible Conductor Size (kcmil) 250
Minimum Compatible Conductor Size (AWG SOL) 2/0
Overall Length (In.) 2
Overall Length (mm) 50.8
Overall Width (In.) 1.88
Overall Width (mm) 47.8
Application Utility/Ground Grid
Overall Height (In.) 2.75
Overall Height (mm) 69.9
Standards Met cULus Listed 467, DB Rated
Product Type Bronze Grounding Clamp, U-Bolt, single cable
Part Features Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.
