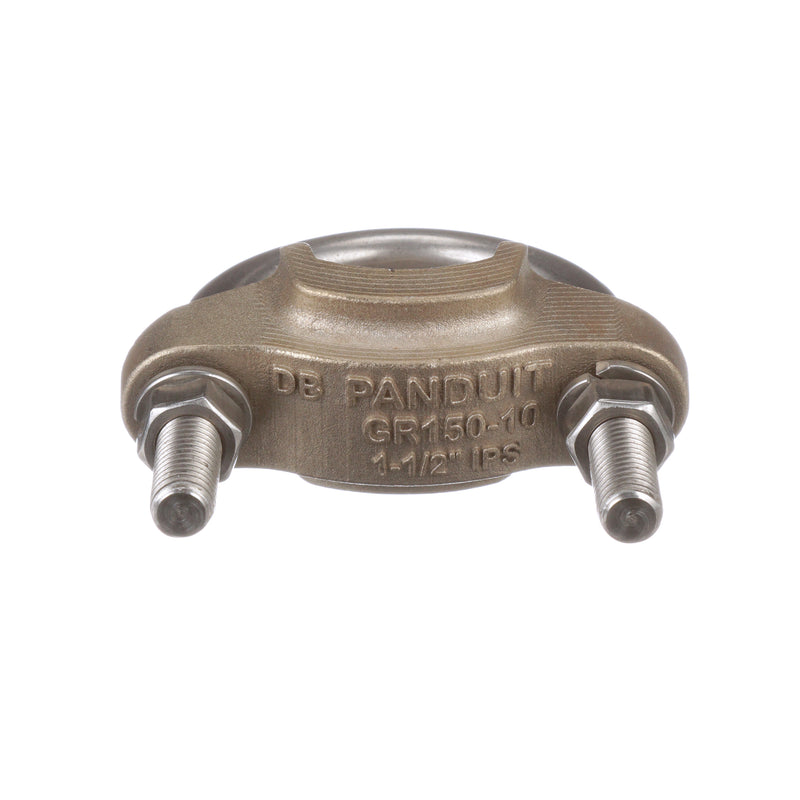

Panduit Pipe Clamp; Braided Strap: 1" x 1/8" to Pipe or Rod; Direct Burial, 1-1/2" Pipe [GR150-10-1]; PAL905

Name: Panduit Pipe Clamp; Braided Strap: 1" x 1/8" to Pipe or Rod; Direct Burial, 1-1/2" Pipe [GR150-10-1]; PAL905
Brand: Panduit
SKU: PAL905
Availability: InStock

Mã kho: PAL905

Mã nhà sản xuất: GR150-10-1

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GR150-10-1

MÔ TẢ SẢN PHẨM

Pipe Clamp; Braided Strap: 1" x 1/8" to Pipe or Rod; Direct Burial, 1-1/2" Pipe

_THÔNG SỐ KỸ THUẬT:

Material	Bronze
Maximum Copper Conductor Size (AWG STR)	2
Minimum Copper Conductor Size (AWG STR)	2
Iron Pipe Size (In.)	1.5
Number Of Wires	1
Overall Length (In.)	3.25
Overall Length (mm)	82.55
Overall Width (In.)	1.38
Overall Width (mm)	35.052
Overall Height (In.)	3.5
Overall Height (mm)	88.9
Bolt Diameter (In.)	3/8
Clamp Tightening Torque (in·lb)	180
Hex Size (In.)	9/16
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Product Type	Ground Clamp
