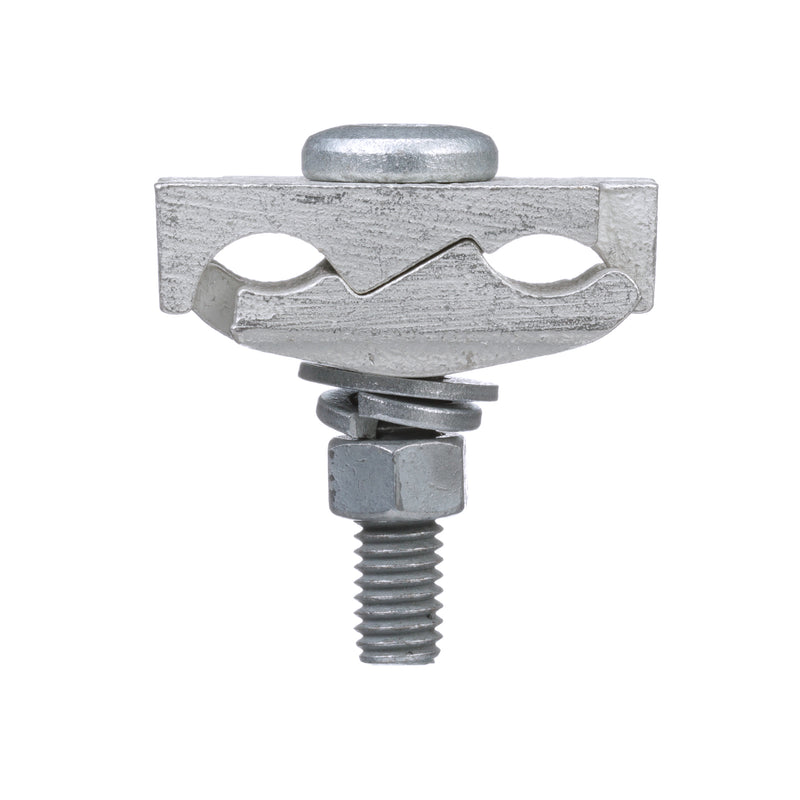

Panduit CABLE TRY CLAMP-2 SOL-2/0 STR [GTC2/0-L]; PAL935

Name: Panduit CABLE TRY CLAMP-2 SOL-2/0 STR [GTC2/0-L]; PAL935
Brand: Panduit
SKU: PAL935
Price: 1906150.0 VND
Availability: InStock

Mã kho: PAL935

Mã nhà sản xuất: GTC2/0-L

Tên nhà sản xuất: Panduit

1.906.150₫ - 1.906.150₫

1.906.150₫

1.906.150₫ - 1.906.150₫

1.906.150₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GTC2/0-L

MÔ TẢ SẢN PHẨM

CABLE TRY CLAMP-2 SOL-2/0 STR

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Grounding Clamp
Material	Tin-Plated Copper Alloy
Maximum Compatible Conductor Size (AWG SOL)	NA
Maximum Compatible Conductor Size (AWG STR)	2/0
Maximum Compatible Conductor Size (AWG)	NA
Hex Size (In.)	3/8
Minimum Compatible Conductor Size (AWG SOL)	2
Minimum Compatible Conductor Size (AWG STR)	NA
Minimum Compatible Conductor Size (AWG)	NA
Overall Length (In.)	1.75
Overall Length (mm)	45
Overall Width (In.)	1.15
Overall Width (mm)	29
Overall Height (In.)	2
Overall Height (mm)	51
Standards Met	cULus Listed to UL467/CSA 22.2 No.4 for Grounding
Application	Utility/Ground Grid
