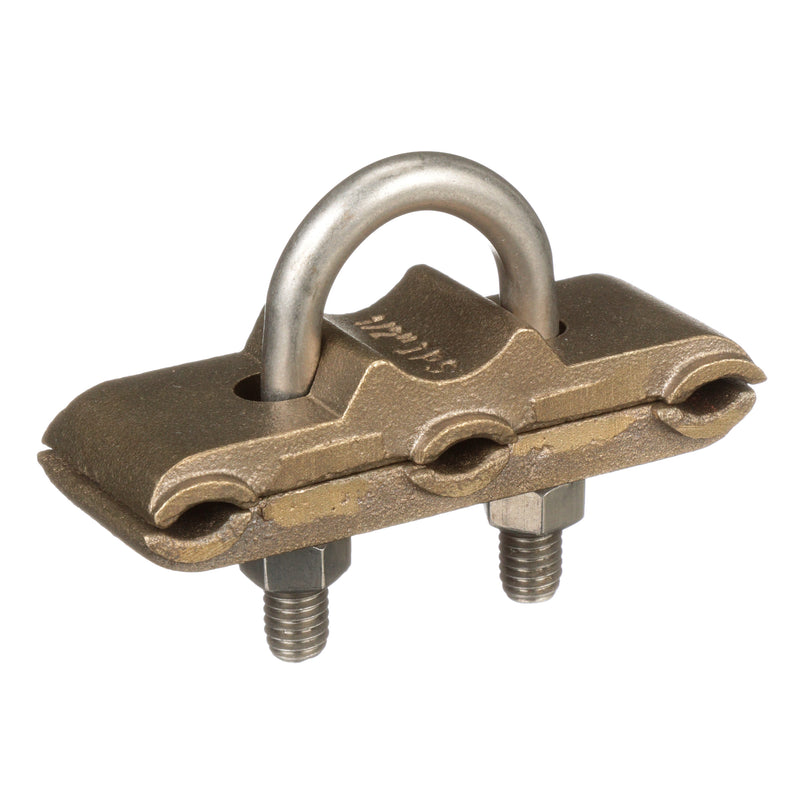

Panduit Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 2-1/2" Pipe Size [GTW250-250-1]; PAL950

Name: Panduit Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 2-1/2" Pipe Size [GTW250-250-1]; PAL950
Brand: Panduit
SKU: PAL950
Availability: InStock

Mã kho: PAL950

Mã nhà sản xuất: GTW250-250-1

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GTW250-250-1

MÔ TẢ SẢN PHẨM

Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 2-1/2" Pipe Size

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	NA
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG SOL)	4
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Iron Pipe Size (In.)	NA
Number Of Wires	3
Overall Length (In.)	5.75
Overall Length (mm)	146
Overall Width (In.)	1.57
Overall Width (mm)	40
Overall Height (In.)	5.08
Overall Height (mm)	129
Bolt Diameter (In.)	3/8
Hex Size (In.)	NA
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Surface Treatment	NA
Note	NA
Product Type	Ground Clamp
