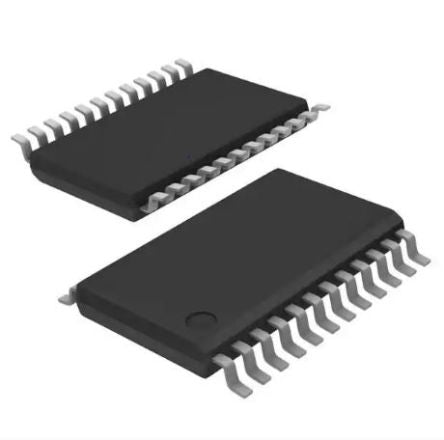

854S006AGILF, Clock Buffer LVDS, 2-Input, 24-Pin SOIC [854S006AGILF]; 216-6214

The Renesas Electronics 854S006 is a low skew, high performance 1-to-6, Differential-to-LVDS fanout buffer. The CLK, nCLK pair can accept most standard differential input levels. The 854S006 is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 854S006 ideal for those clock distribution applications demanding well defined performance and repeatability.

Six differential LVDS outputs

One differential clock input pair

CLK, nCLK pair can accept the following differential input

levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL

Maximum output frequency: 1.7GHz

Translates any single-ended input signal to LVDS levels with

resistor bias on nCLK input

Output Skew: 55ps (maximum)

Propagation delay: 850ps (maximum)

Additive phase jitter, RMS: 0.067ps (typical)

Full 3.3V or 2.5V supply

-40°C to 85°C ambient operating temperature
