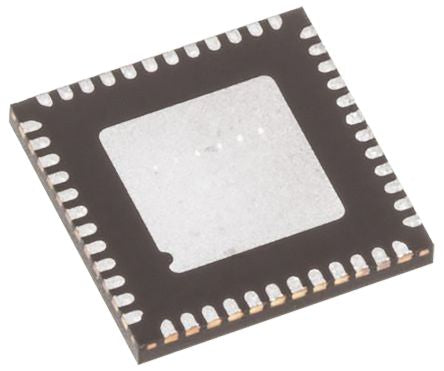

HMC7043LP7FE, Clock Buffer CML, CMOS, LVDS, LVPECL CML, CMOS, LVDS, LVPECL, 1-Input Maximum of 3.2 GHz, 48-Pin LFCSP [HMC7043LP7FE]; 172-7834
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CML, CMOS, LVDS, LVPECL |
| Logic Function | Clock Distribution |
| Input Signal Type | Single Ended |
| Output Logic Level | CML, CMOS, LVDS, LVPECL |
| Operation Mode | Single Ended |
| Number of Clock Inputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Pin Count | 48 |
| Dimensions | 7.1 x 7.1 x 0.85mm |
| Length | 7.1mm |
| Width | 7.1mm |
| Height | 0.85mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Output Frequency | 3.2GHz |
| Output Fall time | 420ps |
| Minimum Operating Supply Voltage | -0.3 V |
| Number of Outputs | 14 |
| Output Rise Time | 425ps |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
