Panduit Wire Routing, Management & Protection, [JP2SBC50-L20]; PAH947

Name: Panduit Wire Routing, Management & Protection, [JP2SBC50-L20]; PAH947
Brand: Panduit
SKU: PAH947
Price: 174430.0 VND
Availability: InStock

Mã kho: PAH947

Mã nhà sản xuất: JP2SBC50-L20

Tên nhà sản xuất: Panduit

174.430₫ - 174.430₫

174.430₫

174.430₫ - 174.430₫

174.430₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Supports And Fasteners / Communication Low Voltage: Panduit JP2SBC50-L20

MÔ TẢ SẢN PHẨM

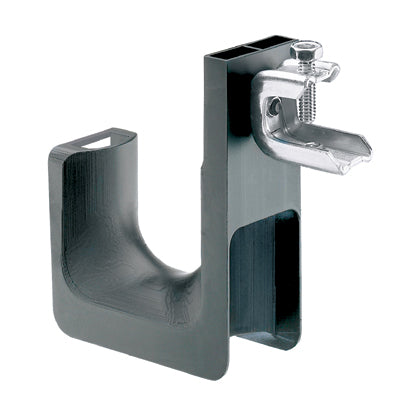

J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, 2.00 (50.8mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Pro Cable Support
Category 5e Cable Capacity	55
Category 6 Cable Capacity	46
Category 6A Cable Capacity	30
Color	Black
Finish/Coating	NA
For Use With	Flanges
Includes	Screw-On Beam Clamp
Material	Nylon 6.6/Metal
Maximum Flange Thickness (In.)	0.5
Maximum Flange Thickness (mm)	12.7
Maximum J-Hook Bundle Capacity	50.08
Mount Method	Screw-On Beam Clamp
Overall Height (In.)	5.8
Overall Height (mm)	146.6
Overall Length (In.)	5.5
Overall Length (mm)	139.6
Overall Width (In.)	5.5
Overall Width (mm)	139.6
Sub Brand	J-Pro
Static Load Capacity (Kg)	13.61
Static Load Capacity (lb)	30
Support Type	J-PRO J-Hook System
Part Features	Bend Radius Control, Smooth Pulling Surface
