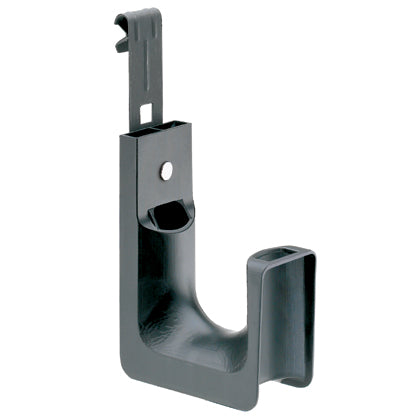

Panduit Wire Routing, Management & Protection, [JP4CP-X20]; PAH967

Name: Panduit Wire Routing, Management & Protection, [JP4CP-X20]; PAH967
Brand: Panduit
SKU: PAH967
Availability: InStock

Mã kho: PAH967

Mã nhà sản xuất: JP4CP-X20

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Supports And Fasteners / Communication Low Voltage: Panduit JP4CP-X20

MÔ TẢ SẢN PHẨM

J-PRO Cable support system, with c-purlin clip for use with vertical flanges up to 1/4 (6.4mm) thick, 4.00 (101.6mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 10 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Pro Cable Support
Category 5e Cable Capacity	200
Category 6 Cable Capacity	180
Category 6A Cable Capacity	115
Color	Black
Finish/Coating	NA
For Use With	Vertical Flanges
Includes	C-purlin clip
Material	Nylon 6.6/Metal
Maximum Flange Thickness (In.)	0.25
Maximum Flange Thickness (mm)	6.4
Maximum J-Hook Bundle Capacity	101.6
Mount Method	Hammer-on Beam Clamp
Overall Height (In.)	10
Overall Height (mm)	254.8
Overall Length (In.)	7.2
Overall Length (mm)	183.4
Overall Width (In.)	7.2
Overall Width (mm)	183.4
Sub Brand	J-Pro
Static Load Capacity (Kg)	45.37
Static Load Capacity (lb)	100
Support Type	J-PRO J-Hook System
Part Features	Bend Radius Control, Smooth Pulling Surface
