Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Hangers: Panduit JMJH2W-X20

MÔ TẢ SẢN PHẨM

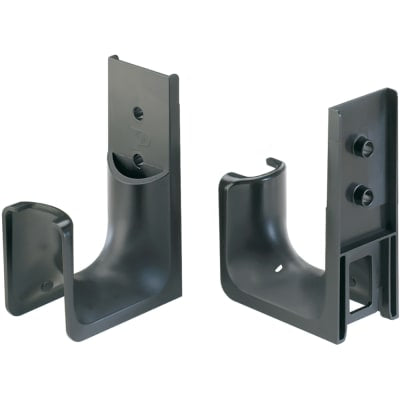

J Hook for wall mount applications only. Two 1/4 (M6) mounting holes for user supplied screws.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Mod Cable Support
Category 5e Cable Capacity	55
Category 6 Cable Capacity	46
Category 6A Cable Capacity	30
Color	Natural
Finish/Coating	NA
Material	Nylon 6.6
Maximum Flange Thickness (In.)	0.24
Maximum Flange Thickness (mm)	6.4
Maximum J-Hook Bundle Capacity	50.8
Mount Method	Wall Mount
Overall Height (In.)	4.75
Overall Height (mm)	120.6
Overall Length (In.)	3.41
Overall Length (mm)	86.6
Overall Width (In.)	3.41
Overall Width (mm)	86.6
Standards Met	RoHS Compliant
Sub Brand	J-Mode
Static Load Capacity (Kg)	13.61
Static Load Capacity (lb)	30
Support Type	J-MOD Modular J-Hook System
