Panduit Wire Routing, Management & Protection, [JP131UF100-L20]; PAH923

Name: Panduit Wire Routing, Management & Protection, [JP131UF100-L20]; PAH923
Brand: Panduit
SKU: PAH923
Price: 132410.0 VND
Availability: InStock

Mã kho: PAH923

Mã nhà sản xuất: JP131UF100-L20

Tên nhà sản xuất: Panduit

132.410₫ - 132.410₫

132.410₫

132.410₫ - 132.410₫

132.410₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Hangers: Panduit JP131UF100-L20

MÔ TẢ SẢN PHẨM

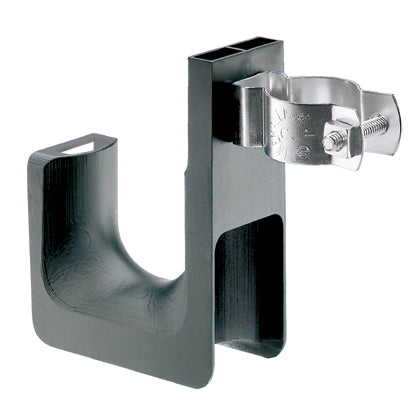

J-PRO Cable support system, with underfloor clamp for use with pedestal support 7/8 square or 1 1/8 - 1 3/8 in diameter, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Pro Cable Support
Category 5e Cable Capacity	29
Category 6 Cable Capacity	25
Category 6A Cable Capacity	15
Color	Black
Finish/Coating	NA
Includes	Underfloor Clamp
Material	Nylon 6.6/Metal
Maximum J-Hook Bundle Capacity	33.34
Mount Method	NA
Overall Height (In.)	3.3
Overall Height (mm)	84.9
Overall Length (In.)	2.5
Overall Length (mm)	64.2
Overall Width (In.)	2.5
Overall Width (mm)	64.2
Sub Brand	J-Pro
Static Load Capacity (Kg)	11.3
Static Load Capacity (lb)	25
Support Type	J-PRO J-Hook System
Part Features	Bend Radius Control, Smooth Pulling Surface
