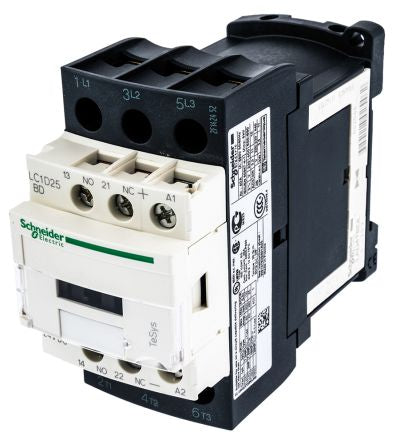

TeSys LC1 3 Pole Contactor, 25 A, 11 kW, 24 V dc Coil [LC1D25BD]; 394-9699
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 Vdc |
| Contact Current Rating | 40 A |
| Number of Poles | 3 |
| Series | LC1 |
| Pole and Throw Configuration | 3P |
| Normal State Configuration | 3 N/O |
| Power Rating | 11 kW |
| Number Of Auxiliary Contacts | 2 |
| Contact Voltage Rating | 690 Vac |
| Mounting Style | DIN Rail |
| Length | 85mm |
| Width | 45mm |
| Depth | 99mm |
| Dimensions | 85 mm (H) x 45 (W) x 99 (D) mm |
| Operating Temperature Range | -5 → +60 °C |
| CAD Drawing | 3D CAD Model |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -5°C |
| Range | TeSys |
