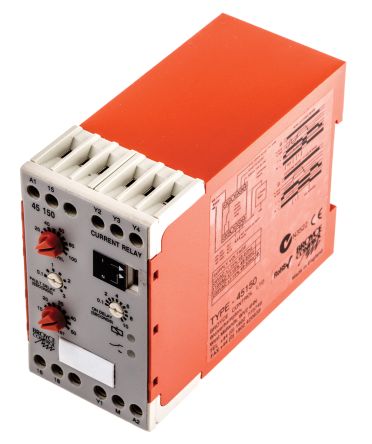

Broyce Control Current Monitoring Relay With SPDT Contacts, 1 Phase, 230 V ac [45150 230VAC]; 299-1914
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 230 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent |
| Minimum Current Sensed | 5mA |
| Maximum Current Sensed | 1A |
| Time Delay | 0.1 → 3 s |
| Length | 99mm |
| Width | 45mm |
| Current Range | 0.05 → 1 A, 0.5 → 10 A, 5 → 100 mA |
| Height | 78mm |
| Minimum Operating Temperature | -20°C |
| Dimensions | 99 x 45 x 78 mm |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Operating Temperature | +60°C |
