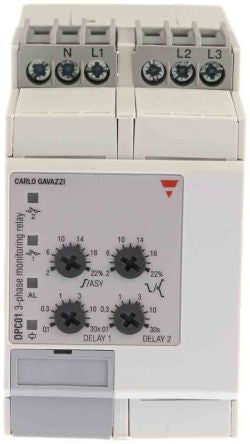

Carlo Gavazzi Phase, Voltage Monitoring Relay With SPDT Contacts, 3, 3+N Phase, 600 → 690 V ac [DPC01DM69]; 857-7700

Mã nhà sản xuất

DPC01DM69

Thương hiệu

CARLO GAVAZZI

Quy cách đóng gói

1 cái

Mã kho

8577700

Liên hệ

📩 Liên hệ để có giá tốt: [email protected]

Over Voltage - Over Current Monitoring Relay

Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

AC/DC over voltage monitoring relay

Selection of measuring range by DIP-switches

Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,

20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC

Adjustable voltage limit on relative scale

Adjustable hysteresis

Programmable latching at set level

Output: 8 A SPDT relay normally de-energized

LED indication for relay and power supply ON

Galvanically separated power supply

Panel and screw termination options available

THÔNG SỐ KỸ THUẬT
Monitoring Application	Phase, Voltage
Supply Voltage	600 → 690 V ac
Contact Configuration	SPDT
Voltage Sensitivity	Overvoltage, Undervoltage
Electrical Phase	3, 3+N
Voltage Sensing Range	510 → 793 V ac
Phase Sensitivity	Asymmetry, Phase Loss, Phase Sequence, Tolerance
Time Delay	1 s, 6 s
Frequency Sensing Range	50 → 60 Hz
Minimum Operating Temperature	-20°C
Minimum Frequency Sensed	50Hz
Minimum Voltage Sensed	510 V ac
Maximum Voltage Sensed	793V ac
Height	83.5mm
Width	99.5mm
Length	45mm
Dimensions	45 x 99.5 x 83.5 mm
Operating Temperature Range	-20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C
Maximum Frequency Sensed	60Hz
Maximum Operating Temperature	+50 (60 Hz) °C, +60 (50 Hz) °C

THÔNG SỐ KỸ THUẬT

Monitoring Application

Phase, Voltage

Supply Voltage

600 → 690 V ac

Contact Configuration

SPDT

Voltage Sensitivity

Overvoltage, Undervoltage

Electrical Phase

3, 3+N

Voltage Sensing Range

510 → 793 V ac

Phase Sensitivity

Asymmetry, Phase Loss, Phase Sequence, Tolerance

Time Delay

1 s, 6 s

Frequency Sensing Range

50 → 60 Hz

Minimum Operating Temperature

-20°C

Minimum Frequency Sensed

50Hz

Minimum Voltage Sensed

510 V ac

Maximum Voltage Sensed

793V ac

Height

83.5mm

Width

99.5mm

Length

45mm

Dimensions

45 x 99.5 x 83.5 mm

Operating Temperature Range

-20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C

Maximum Frequency Sensed

60Hz

Maximum Operating Temperature

+50 (60 Hz) °C, +60 (50 Hz) °C

Carlo Gavazzi Phase, Voltage Monitoring Relay With SPDT Contacts, 3, 3+N Phase, 600 → 690 V ac [DPC01DM69]; 857-7700

Over Voltage - Over Current Monitoring Relay
