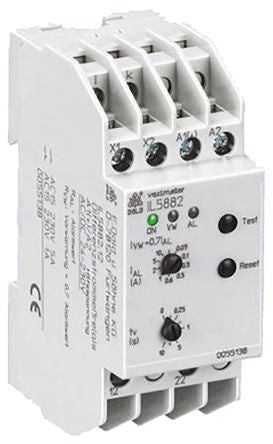

Dold Current Monitoring Relay With DPDT Contacts, 24 → 230 V ac/dc [IL5882.38 AC/DC24V-230V Tv=5S]; 445-9046
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 230 V ac/dc |
| Contact Configuration | DPDT |
| Minimum Current Sensed | 10mA |
| Maximum Current Sensed | 10A |
| Time Delay | 0 → 5 s |
| Minimum Operating Temperature | -20°C |
| Dimensions | 63 x 35 x 90 mm |
| Length | 63mm |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -20 → +60 °C |
| Height | 90mm |
| Current Range | 10 mA → 10 A |
| Width | 35mm |
