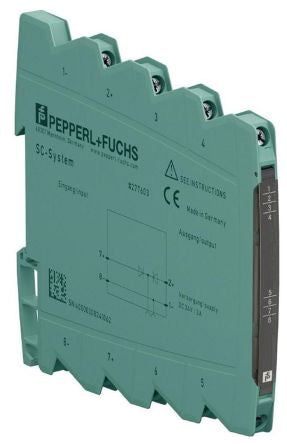

Pepperl + Fuchs SC-System, Switch Amplifier Signal Conditioner, Digital, 2 mA, 24 V dc Output [S1SD-1Di-1R]; 134-8122
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Range | 0.15 → 2 (S0 Sensor) mA, 1.2 → 2.1 (Mechanical Contact) mA, 1.2 → 2.1 (NAMUR Sensor ) mA, 1.2 → 2.1 (SN Sensor) mA, 3 → 5 (NPN Sensor) V, 4 → 6 (2-Wire DC Sensor) V, 8 → 10 (Mechanical Contact) V, 8 → 10 (PNP Sensor) V, 10 → 15 (AC Source) V, 40 → 60 (AC Source) V, 80 → 115 (AC Source) V |
| Output Range | 2 mA, 24 V dc |
| Supply Voltage | 16.8 → 31.2 V dc |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Termination | Screw |
| Number of Channels | 1 |
| Operating Temperature Range | -25 → +70 °C |
| Standards Met | CE, EN 61010-1:2010, EN 61326-1:2013, IEC 60529:2001 |
| Series | SC-System |
