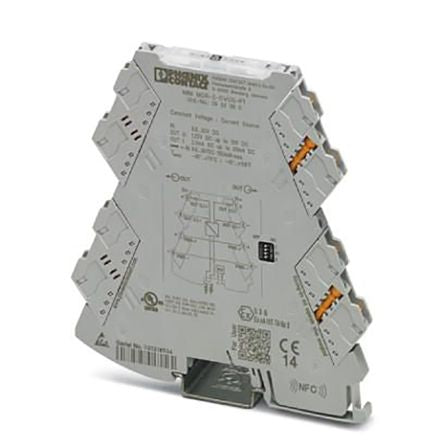

Phoenix Contact Current, Voltage Constant Voltage Source, 9.6 → 30 V dc [2902065]; 890-3884
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current, Voltage |
| Supply Voltage | 9.6 → 30 V dc |
| Voltage Sensing Range | 1.25 → 10 V dc |
| Current Sensitivity | Overcurrent |
| Minimum Current Sensed | 2.5mA |
| Maximum Current Sensed | 20mA |
| Minimum Voltage Sensed | 1.25 V dc |
| Minimum Operating Temperature | -40°C |
| Special Features | Output Adjustable via DIP Switch, Screw or Push-In Connection Available |
| Height | 110.5mm |
| Maximum Voltage Sensed | 10V dc |
| Mounting Type | DIN Rail |
| Current Range | 2.5 → 20 mA |
| Terminal Type | Screw |
| Operating Temperature Range | -40 → +70 °C |
| Dimensions | 120.5 x 6.2 x 110.5 mm |
| Standards Met | ATEX, CE, EN 60715, EN 60947-5-6, EX-Zone 2, IEC 610101-1, UL, UL 508, USA |
| Series | MINI MCR-2-CVCS-PT |
| Length | 120.5mm |
| Width | 6.2mm |
| Maximum Operating Temperature | +70°C |
