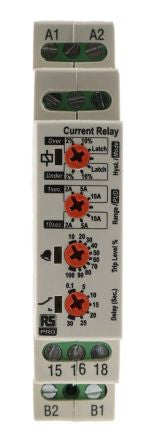

RS PRO Current Multi timer With SPDT Contacts, 1 Phase, 24 → 230 V ac/dc; 102-6134
Mã kho: 1026134
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 230 V ac/dc |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 1A |
| Maximum Current Sensed | 10A |
| Time Delay | 0.1 → 30 s |
| Frequency Sensing Range | 48 → 63 Hz |
| Number of Poles | 1 |
| Current Range | 1 → 10 A |
| Minimum Operating Temperature | -20°C |
| Height | 89mm |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Width | 17.5mm |
| Series | L-Series |
| Standards Met | CE, EMC EN 61000-6 |
| Dimensions | 17.5 x 66.5 x 89 mm |
| Length | 66.5mm |
| Maximum Operating Temperature | +60°C |
