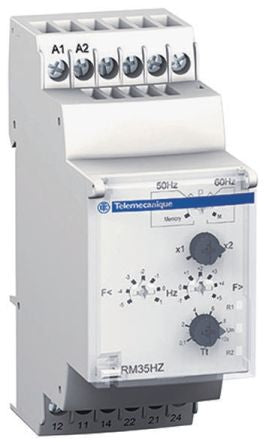

Schneider Electric Frequency Monitoring Relay With DPDT Contacts, 120 → 277 V ac [RM35HZ21FM]; 146-193
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Frequency |
| Supply Voltage | 120 → 277 V ac |
| Contact Configuration | DPDT |
| Time Delay | 0.1 → 10 s |
| Frequency Sensing Range | 40 → 70 Hz |
| Maximum Operating Temperature | +50°C |
| Maximum Frequency Sensed | 70Hz |
| Height | 90mm |
| Operating Temperature Range | -20 → +50 °C |
| Width | 35mm |
| Length | 72mm |
| Frequency Sensitivity | Overfrequency, Underfrequency |
| Dimensions | 72 x 35 x 90 mm |
| Minimum Operating Temperature | -20°C |
| Minimum Frequency Sensed | 40Hz |
