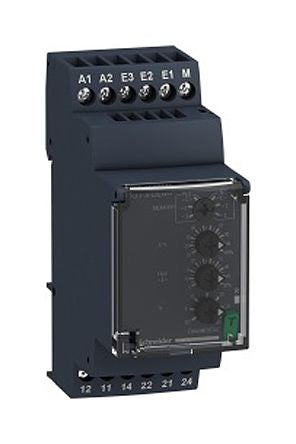

Schneider Electric Current Monitoring Relay With DPDT Contacts, 3 Phase, 323 → 456.5 V ac [RM35JA32MT]; 124-0192
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 323 → 456.5 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 3 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 150mA |
| Maximum Current Sensed | 15A |
| Time Delay | 0.1 → 30 s |
| Height | 90mm |
| Mounting Type | DIN Rail |
| Maximum Operating Temperature | 60°C |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Number of Poles | 2 |
| Width | 72.05mm |
| Length | 35.6mm |
| Current Range | 150 mA → 15 A |
| Minimum Operating Temperature | -20°C |
| Series | RM35JA |
| Standards Met | CCC, CE, CISPR 11, CISPR 22, CSA, EAC, EN/IEC 60255-1, EN/IEC 60715, GL, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60529, IEC 60664-1, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 6100, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5 |
| Dimensions | 35.6 x 72.05 x 90 mm |
