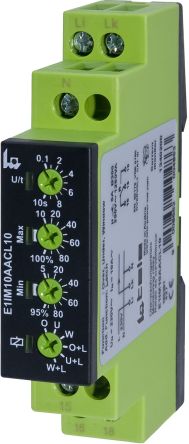

Tele Current Monitoring Relay With SPDT Contacts, 1 Phase, 230 V ac [E1IM10AACL10 230V AC]; 123-9715
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 230 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Maximum Current Sensed | 10 (Input) A, 13 (Over Load) A |
| Time Delay | 0.1 → 10 s |
| Number of Poles | 1 |
| Current Range | Maximum of 10 (Input) A, Maximum of 13 (Over Load) A |
| Length | 17.5mm |
| Width | 65mm |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +55 °C |
| Terminal Type | Screw |
| Height | 87mm |
| Mounting Type | DIN Rail |
| Maximum Operating Temperature | +55°C |
| Dimensions | 17.5 x 65 x 87 mm |
| Series | ENYA |
| Standards Met | EN 60715, IEC 60664-1, IEC 60668-1, IEC 60721-3-3, IEC 60947-5-1 |
