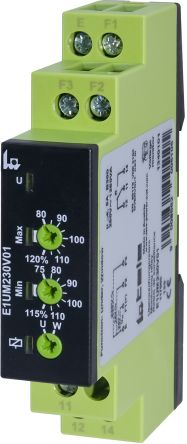

Tele Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 → 230 V ac [E1UM230V01]; 123-9716
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 230 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Self Powered |
| Electrical Phase | 1 |
| Voltage Sensing Range | 24 → 230 V ac |
| Time Delay | 500 (Reset) ms |
| Terminal Type | Screw |
| Operating Temperature Range | -25 → +55 °C |
| Number of Poles | 1 |
| Series | ENYA |
| Dimensions | 17.5 x 65 x 87 mm |
| Height | 87mm |
| Maximum Operating Temperature | +55°C |
| Standards Met | EN 60715, IEC 60664-1, IEC 60668-1, IEC 60721-3-3, IEC 60947-5-1 |
| Minimum Voltage Sensed | 24 V ac |
| Minimum Operating Temperature | -25°C |
| Width | 65mm |
| Length | 17.5mm |
| Maximum Voltage Sensed | 230V ac |
| Mounting Type | DIN Rail |
