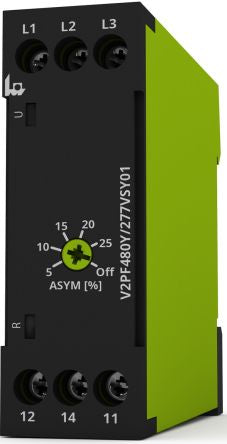

Tele Phase Monitoring Relay With SPDT Contacts, 3 Phase, 120 → 208 V ac, 277 → 480 V ac [V2PF480Y/277VSY01]; 123-9725
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase |
| Supply Voltage | 120 → 208 V ac, 277 → 480 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 3 |
| Phase Sensitivity | Phase Loss, Phase Sequence |
| Time Delay | 250 ms |
| Width | 76mm |
| Length | 22.5mm |
| Minimum Operating Temperature | -25°C |
| Height | 67mm |
| Mounting Type | DIN Rail |
| Series | VEO |
| Operating Temperature Range | -25 → +60 °C |
| Number of Poles | 1 |
| Dimensions | 22.5 x 76 x 67 mm |
| Maximum Operating Temperature | +60°C |
| Standards Met | EN 60715, IEC 60947-5-1, IEC 61000-6-2, IEC 61000-6-4 |
| Terminal Type | Screw |
