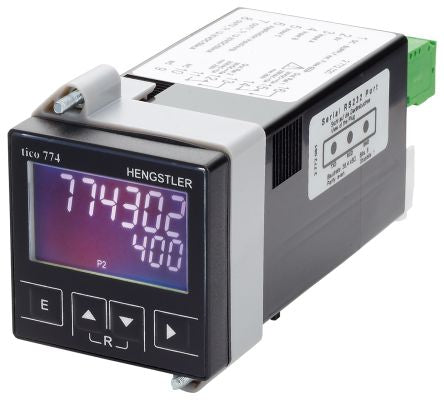

Hengstler 6 Digit, LCD, Digital Counter, 60kHz, 100 → 240 V ac [RS0774342]; 878-0965
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 100 → 240 V ac |
| Display Type | LCD |
| Input Type | Logic |
| Connection Type | Cable |
| Reset Method | Automatic, Electrical, Manual |
| Number of Digits | 6 |
| Mounting Type | Panel Mount |
| Output / Interface | Relay, RS232 Interface |
| Count Direction | Uni-Directional |
| Digit Height | 7.2 (Second Line) mm, 9.3 (First Line) mm |
| Backlighting | Yes |
| Maximum Count Frequency | 60kHz |
| Measurement Range | -999999 → 999999 |
| Meter Type | Electronic |
| Function | Batch Counter, Shift Counter, Tachometer, Timer |
| Minimum Measurement | -999999 |
| Cutout Height | 45mm |
| Cutout Size | 45 x 45 mm |
| Minimum Operating Temperature | 0°C |
| Depth | 118mm |
| Cutout Width | 45mm |
| Series | TICO 774 |
| Approvals | CSA, EN 61010-1, IEC, IEC 61010-1, RoHS, UL |
| Maximum Operating Temperature | +50°C |
