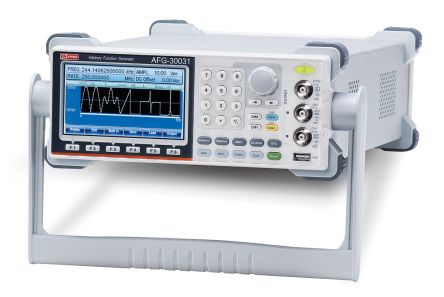

RS PRO AFG-3051 Function Generator 50MHz GPIB, RS232, USB; 124-0227
Mã kho: 1240227
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 50MHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 50MHz |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Width | 374mm |
| Length | 265mm |
| Output Impedance | 50 (Typ.)Ω |
| Weight | 4kg |
| Dimensions | 265 x 374 x 107mm |
| Output Amplitude | 10 mV Pk-Pk → 10 V Pk-Pk |
| Maximum Operating Temperature | +40°C |
| Model Number p | AFG-3051 |
| Interface Type | GPIB, RS232, USB |
| Minimum Operating Temperature | 0°C |
| Frequency Range Square Pulse and Arbitrary Waveform | Maximum of 50 MHz |
| Height | 107mm |
