Panduit Crimping Tools, Pumps & Accessories, [CD-920-350]; PAF279

Name: Panduit Crimping Tools, Pumps & Accessories, [CD-920-350]; PAF279
Brand: Panduit
SKU: PAF279
Price: 6763950.0 VND
Availability: InStock

Mã kho: PAF279

Mã nhà sản xuất: CD-920-350

Tên nhà sản xuất: Panduit

6.763.950₫ - 6.763.950₫

6.763.950₫

6.763.950₫ - 6.763.950₫

6.763.950₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CD-920-350

MÔ TẢ SẢN PHẨM

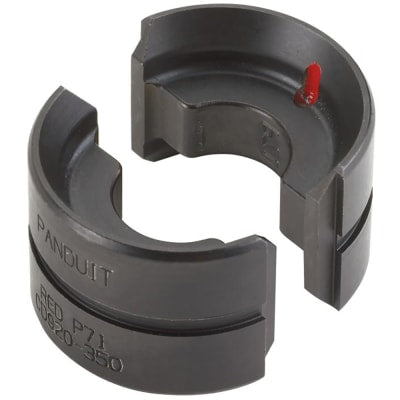

The CD-920-350 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimp

_THÔNG SỐ KỸ THUẬT:

Aluminum Conductor Size (kcmil)	250
Copper Conductor Size (kcmil)	350
Panduit Die Index Number	P71
Color Code	Red
Flex Conductor Size (kcmil)	300
For Use With	Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH crimp head, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately.
Connection Type	Crimp
Sub Brand	Pan-Lug™
Application	Crimp dies for Panduit Power Connectors and Splices.
Crimp Profile	Circumferential
Base Material	Steel
Finish/Coating	Black Oxide
Product Type	CD-920 Crimp Dies
Part Features	Color coded to connector,premium crimp,embosses die number
