Panduit Crimping Tools, Pumps & Accessories, [CT-1003]; PAF290

Name: Panduit Crimping Tools, Pumps & Accessories, [CT-1003]; PAF290
Brand: Panduit
SKU: PAF290
Price: 8310200.0 VND
Availability: InStock

Mã kho: PAF290

Mã nhà sản xuất: CT-1003

Tên nhà sản xuất: Panduit

8.310.200₫ - 8.310.200₫

8.310.200₫

8.310.200₫ - 8.310.200₫

8.310.200₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-1003

MÔ TẢ SẢN PHẨM

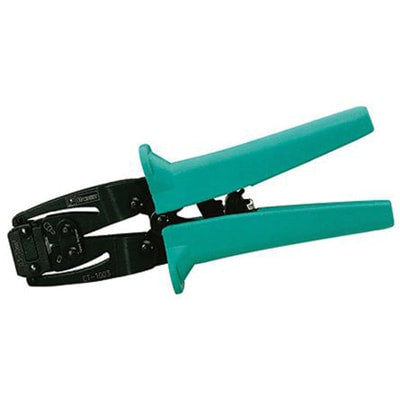

The CT-1003 Contour Crimp™ Ferrule Crimp Tool has a trapezoid profile. The controlled-cycle mechanism assures high quality, consistent terminations. The ergonomic grip and front load design assures operator comfort and convenience.

Note	CT-2600/L Replaces CT-2600
Compatible Connector	P, PV, and PK series large size terminals (#8 - #2) and #8 - 300 kcmil lugs and splices
Tool Type	Die Type
Maximum Wire Size (AWG)	#2
Minimum Wire Size (AWG)	#8
For Use With	CD-2600, KC4, and KA4 series dies
Includes	Two 18V 2.0Ah Li-ion batteries, and 120V battery charger
Crimp Force (ton)	4
Crimp Cycle Time (s)	4
Battery Charge Time (min)	22
Battery Chemistry	Lithium-Ion
Overall Height (In.)	2.87
Overall Height (mm)	73
Overall Length (In.)	13.25
Overall Length (mm)	337
Overall Width (In.)	4.5
Overall Width (mm)	114
Standards Met	Certified to IEC/EN 62841-1 and tested to EN61000
Product Type	Crimping Tool
Tool Configuration	In-Line Design
Weight (Kg)	1.8
Weight (lb)	4
Crimp Profile	Circumferential or Hexagonal
Battery Voltage (V)	120
Part Features	CT-2600/L includes: Tool with crimp head, two 18 Volt 2Ah Makita Li-On batteries, one 120V battery charger and molded carrying case

Crimp Profile	Trapezoid
Base Material	Steel
Compatible Connector	Loose Piece F, FSD, FSDX, FSDXL, and FTD series Ferrules
Sub Brand	Contour Crimp™
Overall Width (In.)	2.17
Overall Width (mm)	55.1
Product Type	Controlled Cycle Crimp Tool
Maximum Wire Size (AWG)	#8
Minimum Wire Size (AWG)	#22
Overall Length (In.)	8.27
Overall Length (mm)	210
Weight (Kg)	0.3
Weight (lb)	0.66
Part Features	Length: 8.27 In. (210,06mm) Width (Closed Handle): 2.17 In. (55,11mm) Weight (Approx.): 10.6 oz. (300 gr.)
