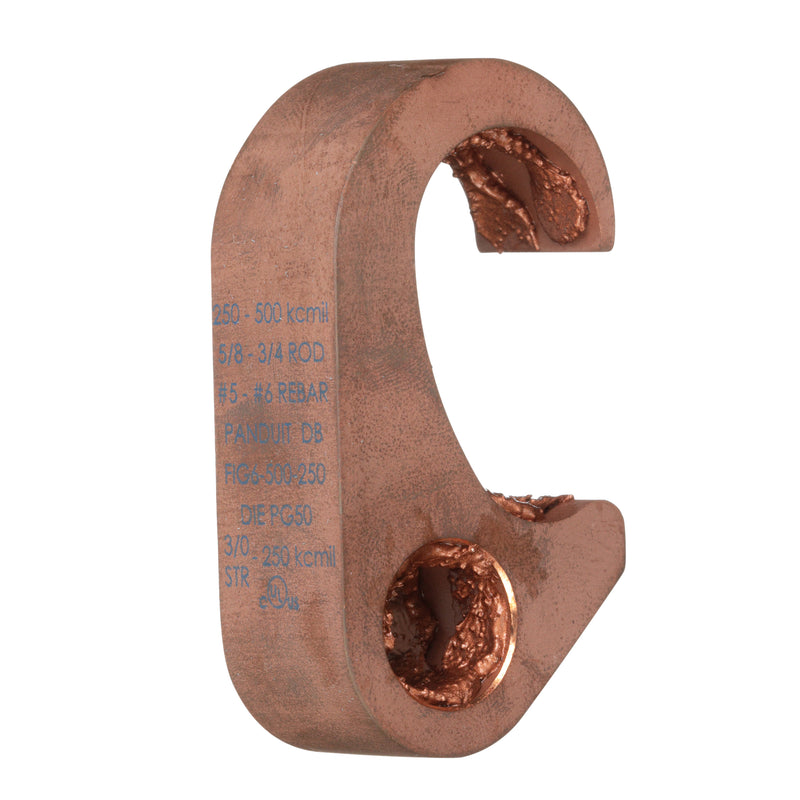

Panduit FIG6-500-250

Panduit Grounding "Figure 6" Style Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 3/0 Str - 250 kcmil (85-120mm2) Tap [FIG6-500-250]; PAL234

Mã kho: PAL234
Mã nhà sản xuất: FIG6-500-250
Tên nhà sản xuất: Panduit
1.486.700₫ - 1.486.700₫
1.486.700₫
1.486.700₫ - 1.486.700₫
1.486.700₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Cross Connectors: Panduit FIG6-500-250

MÔ TẢ SẢN PHẨM

The FIG6-500-250 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications and with copper clad, solid copper an

_THÔNG SỐ KỸ THUẬT:

Sub Brand StructuredGround™
Overall Length (In.) 1.4
Overall Length (mm) 35.6
Material High Conductivity Copper
Overall Width (In.) 0.75
Overall Width (mm) 19
Overall Height (In.) 2.6
Overall Height (mm) 66
Maximum Copper Conductor Size (kcmil) 500
Minimum Copper Conductor Size (kcmil) 250
Maximum Ground Rod Size (In.) 3/4
Maximum Ground Rod Size (mm) 19.05
Minimum Ground Rod Size (In.) 5/8
Minimum Ground Rod Size (mm) 15.87
Maximum Rebar Size (AWG) 6
Maximum Rebar Size (In.) 3/4
Maximum Rebar Size (mm) 19.05
Minimum Rebar Size (AWG) 5
Minimum Rebar Size (In.) 5/8
Minimum Rebar Size (mm) 15.87
Panduit Die Index Number PG50
Color Code Blue
Standards Met cULus Listed to UL 467 for direct burial grounding applications in earth or concrete. All parts are UL Listed to UL 486A/486B for power applications wire to wire combinations only.
Application Utility/Ground Grid
Product Type Grounding Fig. 6 Connector
