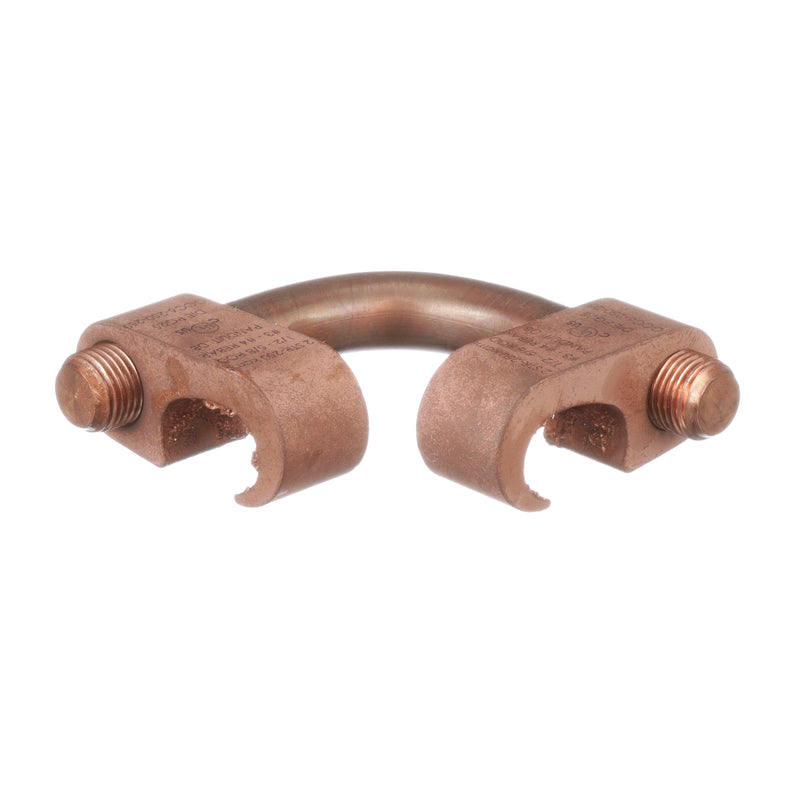

Panduit Grounding "6x6" Style Cross Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 6 Sol - 2 Str (10-35mm2) Tap [GCC6-250-2]; PAL594

Name: Panduit Grounding "6x6" Style Cross Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 6 Sol - 2 Str (10-35mm2) Tap [GCC6-250-2]; PAL594
Brand: Panduit
SKU: PAL594
Price: 2410560.0 VND
Availability: InStock

Mã kho: PAL594

Mã nhà sản xuất: GCC6-250-2

Tên nhà sản xuất: Panduit

2.410.560₫ - 2.410.560₫

2.410.560₫

2.410.560₫ - 2.410.560₫

2.410.560₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Cross Connectors: Panduit GCC6-250-2

MÔ TẢ SẢN PHẨM

Grounding "6x6" Style Cross Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 6 Sol - 2 Str (10-35mm2) Tap

_THÔNG SỐ KỸ THUẬT:

Note	NA
Sub Brand	NA
Connector Type	Cross Connector
Overall Length (In.)	0.9
Overall Length (mm)	23.2
Material	High Conductivity Copper
Overall Width (In.)	0.75
Overall Width (mm)	19.1
Overall Height (In.)	2.1
Overall Height (mm)	53.3
Maximum Copper Conductor Size (AWG SOL)	2
Maximum Copper Conductor Size (AWG STR)	2
Maximum Copper Conductor Size (AWG)	NA
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG SOL)	6
Minimum Copper Conductor Size (AWG STR)	6
Minimum Copper Conductor Size (AWG)	NA
Maximum Ground Rod Size (In.)	5/8
Maximum Ground Rod Size (mm)	15.9
Minimum Ground Rod Size (In.)	1/2
Minimum Ground Rod Size (mm)	12.7
Maximum Rebar Size (AWG)	4
Maximum Rebar Size (In.)	1/2
Maximum Rebar Size (mm)	12.7
Minimum Rebar Size (AWG)	3
Minimum Rebar Size (In.)	3/8
Minimum Rebar Size (mm)	9.5
Panduit Die Index Number	PG25
Color Code	Black
Standards Met	cULus Listed to UL 467 for direct burial grounding applications iin earth or concrete. All parts are UL Listed to UL 486A/486B for power applications wire to wire combinations only.
Application	Utility/Ground Grid
Product Type	Grounding Cross Connector

Panduit Grounding "6x6" Style Cross Connector, 2 Str - 250 kcmil (35-120mm2), 1/2 - 5/8 Rod (12.7-15.9mm), or #3 - #4 Rebar (#10M-#13M) Main, 6 Sol - 2 Str (10-35mm2) Tap [GCC6-250-2]; PAL594
