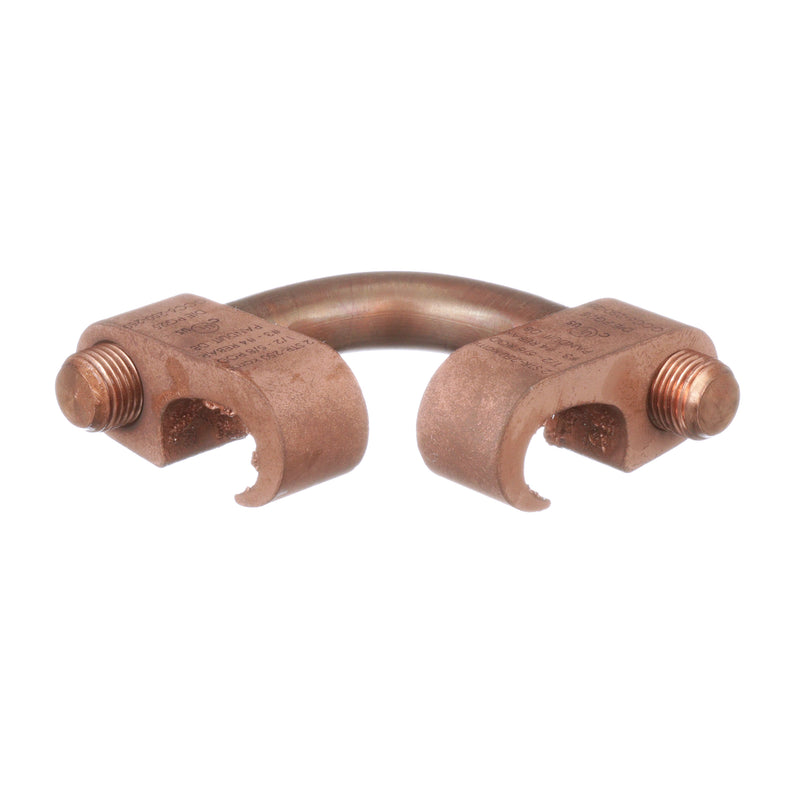

Panduit GCC6-500-2

Panduit Grounding "6x6" Style Cross Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 6 Sol - 2 Str (10-35mm2) Tap [GCC6-500-2]; PAL596

Mã kho: PAL596
Mã nhà sản xuất: GCC6-500-2
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Cross Connectors: Panduit GCC6-500-2

MÔ TẢ SẢN PHẨM

Grounding "6x6" Style Cross Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 6 Sol - 2 Str (10-35mm2) Tap

_THÔNG SỐ KỸ THUẬT:

Note NA
Sub Brand NA
Connector Type Cross Connector
Overall Length (In.) 1.4
Overall Length (mm) 34.8
Material High Conductivity Copper
Overall Width (In.) 0.75
Overall Width (mm) 19.1
Overall Height (In.) 2.6
Overall Height (mm) 66.1
Maximum Copper Conductor Size (AWG SOL) 2
Maximum Copper Conductor Size (AWG STR) 2
Maximum Copper Conductor Size (AWG) NA
Maximum Copper Conductor Size (kcmil) 500
Minimum Copper Conductor Size (AWG SOL) 6
Minimum Copper Conductor Size (AWG STR) 6
Minimum Copper Conductor Size (AWG) NA
Minimum Copper Conductor Size (kcmil) 250
Maximum Ground Rod Size (In.) 3/4
Maximum Ground Rod Size (mm) 19.1
Minimum Ground Rod Size (In.) 5/8
Minimum Ground Rod Size (mm) 15.9
Maximum Rebar Size (AWG) 6
Maximum Rebar Size (In.) 3/4
Maximum Rebar Size (mm) 19.1
Minimum Rebar Size (AWG) 5
Minimum Rebar Size (In.) 5/8
Minimum Rebar Size (mm) 15.9
Panduit Die Index Number PG50
Color Code Blue
Standards Met cULus Listed to UL 467 for direct burial grounding applications iin earth or concrete. All parts are UL Listed to UL 486A/486B for power applications wire to wire combinations only.
Application Utility/Ground Grid
Product Type Grounding Cross Connector
