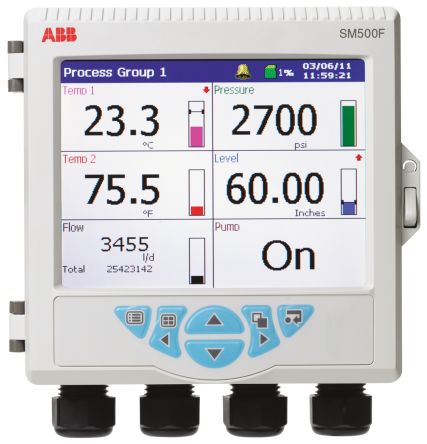

ABB SM501FCB000000ESTD/STD, 1 Channel, Graphic Recorder Measures Current, Millivolt, Resistance, Temperature, Voltage [SM501FCB000000ESTD]; 216-113
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Chart Type | Videographic |
| Parameter Measured | Current, Millivolt, Resistance, Temperature, Voltage |
| Maximum Temperature Measurement | +300 °C, +550 °F, +600 °C, +900 °C, +1100 °F, +1300 °C, +1650 °F, +1700 °C, +1800 °C, +2350 (N) °F, +3000 (R) °F, +3270 (B) °F |
| Maximum Current Measurement | 50mA |
| Maximum Voltage Measurement | +25V |
| Maximum Resistance Measurement | 10 kΩ, 550 Ω |
| Recorder Input Type | MA, MV, RTD, Thermocouple, V |
| Number of Inputs | 1 |
| IP Rating | IP66 |
| Best Temperature Measurement Accuracy | ±0.1 % |
| Temperature Measurement Resolution | 0.0001 |
| Best Voltage Measurement Accuracy | ±0.2 % |
| Voltage Measurement Resolution | 0.0001 |
| Minimum Operating Voltage | 85V ac |
| Weight | 1kg |
| Best Resistance Measurement Accuracy | ±0.1 % |
| Resistance Measurement Resolution | 0.0001 |
| Length | 144mm |
| Width | 144mm |
| Power Source | Mains |
| Current Measurement Resolution | 0.0001 |
| Best Current Measurement Accuracy | ±0.2 % |
| Model Number p | SM501FCB000000ESTD/STD |
| Height | 79mm |
| Dimensions | 144 x 144 x 79mm |
| Maximum Operating Voltage | 265V ac |
