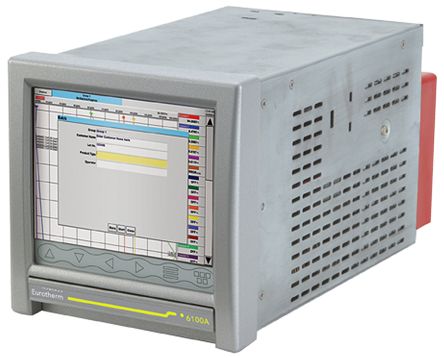

Eurotherm 6100A, 18 Channel, Paperless Chart Recorder Measures Current, Millivolt, Resistance, Voltage [6100A/U18/PANEL/NOLCK/06GROUP/BATCH]; 812-3915
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Chart Type | Paperless |
| Parameter Measured | Current, Millivolt, Resistance, Voltage |
| Maximum Current Measurement | 20mA |
| Maximum Voltage Measurement | 10V |
| Maximum Resistance Measurement | 6 kΩ |
| Recorder Input Type | Thermocouple |
| Number of Inputs | 18 |
| Number of Outputs | 3 |
| IP Rating | IP66 |
| Length | 144mm |
| Model Number p | 6100A |
| Height | 144mm |
| Dimensions | 144 x 246.5 x 144mm |
| Maximum Operating Voltage | 265V ac |
| Width | 246.5mm |
| Power Source | Battery |
| Weight | 3kg |
| Resistance Measurement Resolution | 148mΩ |
| Best Current Measurement Accuracy | 0.001 |
| Battery Life | 1 yr |
| Battery Type | Lithium, Poly-Carbonmonofluoride |
| Best Voltage Measurement Accuracy | 0.001 |
| Minimum Operating Voltage | 85V ac |
