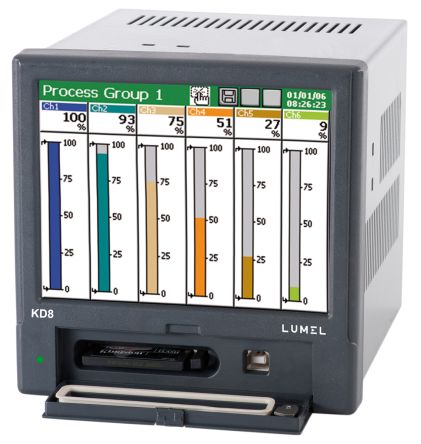

Lumel KD8, 4 Channel, Graphic Recorder Measures Current, Humidity, Resistance, Temperature, Voltage [KD8 1012008]; 123-6802
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Chart Type | Videographic |
| Parameter Measured | Current, Humidity, Resistance, Temperature, Voltage |
| Maximum Temperature Measurement | +180 (Cu) °C, +180 (Ni) °C, +400 (T) °C, +800 (L) °C, +850 (Pt) °C, +1000 (E) °C, +1100 (GR) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (R) °C, +1760 (S) °C, +1820 (B) °C |
| Maximum Current Measurement | 20mA |
| Maximum Voltage Measurement | 9999mV |
| Maximum Resistance Measurement | 2000 Ω |
| Recorder Input Type | Thermocouple |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| IP Rating | IP65 |
| Best Temperature Measurement Accuracy | 0.1 (E) %, 0.1 (J) %, 0.1 (K) %, 0.1 (L) %, 0.1 (N) %, 0.1 (T) %, 0.15 (Cu 100) %, 0.15 (GR 100M) %, 0.15 (GR 100P) %, 0.15 (GR 50M) %, 0.15 (GR 50P) %, 0.15 (GR) %, 0.15 (Ni 100) %, 0.15 (Pt 100) %, 0.2 (B) %, 0.2 (R) %, 0.2 (S) %, 0.3 (Pt 1000) %, 0.3 (Pt 500) % |
| Dimensions | 144 x 171 x 144mm |
| Best Voltage Measurement Accuracy | 0.0015 |
| Weight | <2kg |
| Best Current Measurement Accuracy | 0.0015 |
| Model Number p | KD8 |
| Maximum Operating Voltage | 253V |
| Length | 144mm |
| Best Resistance Measurement Accuracy | 0.0015 |
| Minimum Operating Voltage | 90V |
| Width | 171mm |
| Power Source | Mains |
| Height | 144mm |
