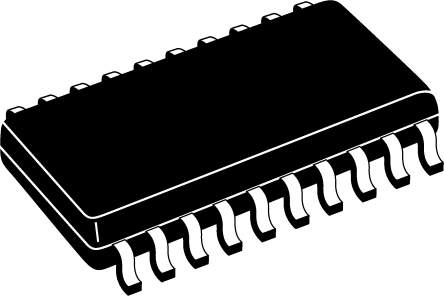

Analog Devices AD8804ARZ, 12-Channel 8 bit Serial DAC, 1.7Msps, 20-Pin SOIC W [AD8804ARZ]; 145-1268
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 12 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | SOIC W |
| Power Supply Type | Single |
| Conversion Rate | 1.7Msps |
| Typical Single Supply Voltage | 3 V, 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 0.6µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±1LSB |
| Minimum Operating Temperature | -40 °C |
| Width | 7.6mm |
| Height | 2.35mm |
| Length | 13mm |
| Maximum Operating Temperature | +85 °C |
| Integral Nonlinearity Error | ±1.5LSB |
| Dimensions | 13 x 7.6 x 2.35mm |
