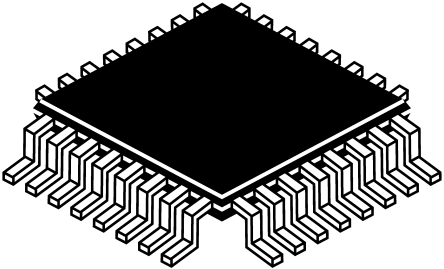

Analog Devices AD9767ASTZ, 2-Channel 14 bit Parallel DAC, 125Msps, 48-Pin LQFP [AD9767ASTZ]; 697-7458
Liên hệ
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Power Supply Type | Single |
| Conversion Rate | 125Msps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External, Internal |
| Architecture | Segmented |
| Pin Count | 48 |
| Maximum Settling Time | 0.035µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±5%FSR |
| Dimensions | 7 x 7 x 1.4mm |
| Integral Nonlinearity Error | ±4LSB |
| Height | 1.4mm |
| Maximum Operating Temperature | +85 °C |
| Length | 7mm |
| Width | 7mm |
| Minimum Operating Temperature | -40 °C |
