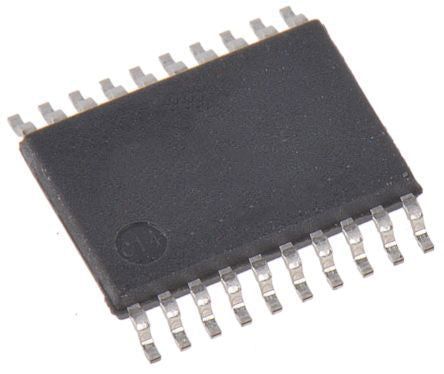

8Ch 12/10/8Bit Voltage DACs Internal Ref [MAX5725BAUP+]; 190-5548
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 8 |
| Digital Interface Type | 4-Wire Serial, Microwire, Serial (DSP), SPI/QSPI |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External, Internal |
| Pin Count | 20 |
| Maximum Settling Time | 4.5 (Typ.)µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±0.5%FSR |
| Length | 6.6mm |
| Height | 0.95mm |
| Integral Nonlinearity Error | ±1LSB |
| Dimensions | 6.6 x 4.5 x 0.95mm |
| Maximum Operating Temperature | +125 °C |
| Width | 4.5mm |
| Minimum Operating Temperature | -40 °C |
