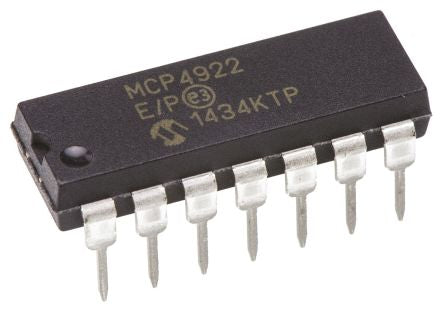

Microchip MCP4922-E/P, 2-Channel 12 bit Serial DAC, 14-Pin PDIP [MCP4922-E/P]; 402-881
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI/Microwire) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 V, 5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 14 |
| Maximum Settling Time | 4.5µs |
| Output Polarity | Unipolar |
| Full Scale Error | 1%FSR |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±12LSB |
| Maximum Operating Temperature | +125 °C |
| Height | 3.3mm |
| Dimensions | 19.05 x 6.35 x 3.3mm |
| Length | 19.05mm |
| Width | 6.35mm |
