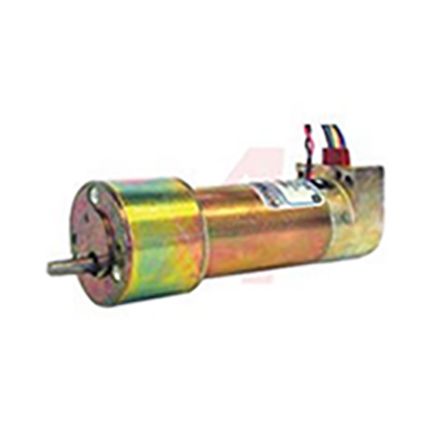

PITTMAN AMETEK TIP, 24 V dc, 0.34 Nm, Brushed DC Geared Motor, Output Speed 790 rpm [GM9236S015-R1]; 921-3735
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 790 rpm |
| Supply Voltage | 24 V dc |
| Maximum Output Torque | 34 Ncm |
| DC Motor Type | Brushed |
| Shaft Diameter | 6.34mm |
| Power Rating | 25 W |
| Gearhead Type | Spur |
| Length | 109.9mm |
| Width | 50.8 (Dia.)mm |
| Dimensions | 109.9 x 50.8 (Dia.) mm |
| Current Rating | 9.6 A |
| Gear Ratio | 5.9:1 |
| Series | GM 9000 |
| Shaft Angle | Straight |
| Standards Met | RoHS |
