Panduit Signs, Labels & Identification, [H050X044H1T-B]; PAG242

Name: Panduit Signs, Labels & Identification, [H050X044H1T-B]; PAG242
Brand: Panduit
SKU: PAG242
Price: 63846910.0 VND
Availability: InStock

Mã kho: PAG242

Mã nhà sản xuất: H050X044H1T-B

Tên nhà sản xuất: Panduit

63.846.910₫ - 63.846.910₫

63.846.910₫

63.846.910₫ - 63.846.910₫

63.846.910₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Desktop Printer Labels: Panduit H050X044H1T-B

MÔ TẢ SẢN PHẨM

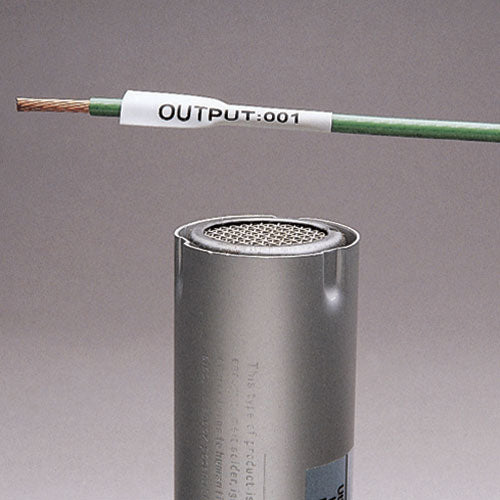

The H050X044H1T-B Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Desi

_THÔNG SỐ KỸ THUẬT:

Product Type	Heat Shrink Label
Color	White
Compatible Wire Gauge (AWG)	16-10
Diameter (In.)	0.25
Diameter (mm)	6.4
Material	Polyolefin
Flammability Rating	VW-1
Number of Labels	10000
Number of Labels per Row	4
Number of Sides	1
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Overall Height (In.)	0.44
Overall Height (mm)	11.2
Overall Width (In.)	0.5
Overall Width (mm)	12.7
Resistance Properties	Military Grade
Standards Met	Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
Sub Brand	Pan-Code®
Label Application	Cable & Wire Marking
Label Property	Flammability, Fluid Resistance, Harsh Environments, Military Grade
Printer Type	Thermal Transfer
