Panduit Signs, Labels & Identification, [R200X400V1T]; PAH476

Name: Panduit Signs, Labels & Identification, [R200X400V1T]; PAH476
Brand: Panduit
SKU: PAH476
Price: 38010.0 VND
Availability: InStock

Mã kho: PAH476

Mã nhà sản xuất: R200X400V1T

Tên nhà sản xuất: Panduit

38.010₫ - 38.010₫

38.010₫

38.010₫ - 38.010₫

38.010₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Desktop Printer Labels: Panduit R200X400V1T

MÔ TẢ SẢN PHẨM

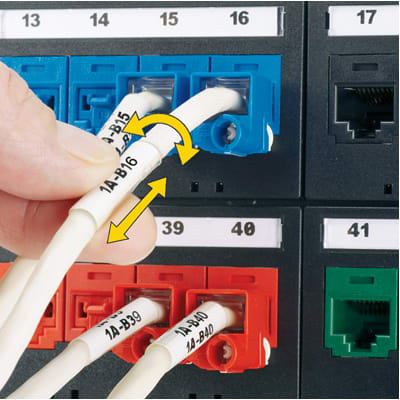

The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50 (12.7 mm) high. It can easily be installed on existing terminated wire

_THÔNG SỐ KỸ THUẬT:

Product Type	Turn-Tell Label
Sub Brand	Turn-Tell®
Cable Type	250 MCM
Color	White
Material	Vinyl
Printer Type	Thermal Transfer
Standards Met	RoHS Compliant
Compatible Wire Gauge (AWG)	2-1
Maximum Cable Diameter (In.)	0.95
Maximum Cable Diameter (mm)	24.1
Minimum Cable Diameter (In.)	0.39
Minimum Cable Diameter (mm)	9.9
Overall Length (In.)	4
Overall Length (mm)	101.6
Overall Width (In.)	2
Overall Width (mm)	50.8
Print-On Area Height (In.)	1
Print-On Area Height (mm)	25.4
Maximum Operating Temperature (°C)	66
Maximum Operating Temperature (°F)	150
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Number of Labels	2
Label Application	Cable & Wire Marking
