Panduit Signs, Labels & Identification, [S050X250VATY]; PAH481

Name: Panduit Signs, Labels & Identification, [S050X250VATY]; PAH481
Brand: Panduit
SKU: PAH481
Price: 3500.0 VND
Availability: InStock

Mã kho: PAH481

Mã nhà sản xuất: S050X250VATY

Tên nhà sản xuất: Panduit

3.500₫ - 3.500₫

3.500₫

3.500₫ - 3.500₫

3.500₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Desktop Printer Labels: Panduit S050X250VATY

MÔ TẢ SẢN PHẨM

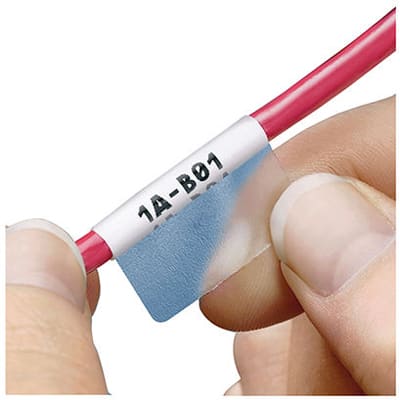

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 8 labels per row. The label has a white colored print-on area 1.0" (25.4 mm) high for 6 - 2 AWG wires and a clear overlaminate. It is 0.5" wide and 2.5" long (12.7 x 63.5 mm) with a 3.0" (76.2 mm) cor

_THÔNG SỐ KỸ THUẬT:

Product Type	Self-Laminating Label
Color	White
Material	Vinyl
Printer Type	Thermal Transfer
Standards Met	RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
Sub Brand	Pan-Code®
Compatible Wire Gauge (AWG)	6 – 2
Maximum Cable Diameter (In.)	0.48
Maximum Cable Diameter (mm)	12.2
Minimum Cable Diameter (In.)	0.32
Minimum Cable Diameter (mm)	8.1
Maximum Operating Temperature (°C)	65
Maximum Operating Temperature (°F)	150
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Number of Labels	5000
Overall Length (In.)	2.5
Overall Length (mm)	63.5
Overall Width (In.)	0.5
Overall Width (mm)	12.7
Print-On Area Height (In.)	1
Print-On Area Height (mm)	25.4
Label Application	Cable & Wire Marking
Label Property	Flammability
