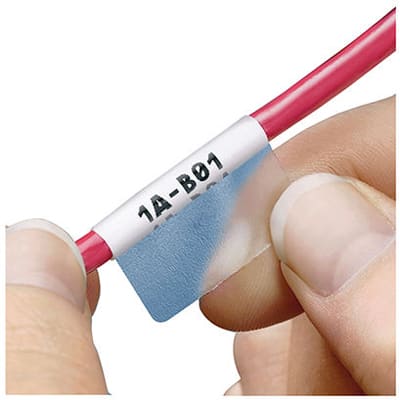

Panduit S075X100VATY

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 5 labels per row. The label has a white colored print-on area 0.38" (9.65 mm) high for Category 3 UTP and 12 - 10 AWG and a clear overlaminate. It is 0.75"

Mã kho: PAO617
Tên nhà sản xuất: Panduit
920₫ - 920₫
920₫
920₫ - 920₫
920₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Desktop Printer Labels: Panduit S075X100VATY

MÔ TẢ SẢN PHẨM

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 5 labels per row. The label has a white colored print-on area 0.38" (9.65 mm) high for Category 3 UTP and 12 - 10 AWG and a clear overlaminate. It is 0.75" wide and 1.0" long (19.1 x 25.4 mm) with a 3

_THÔNG SỐ KỸ THUẬT:

Product Type Self-Laminating Label
Cable Type Category 3 UTP
Color White
Material Vinyl
Printer Type Thermal Transfer
Standards Met RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
Sub Brand Pan-Code®
Compatible Wire Gauge (AWG) 12 – 10
Maximum Cable Diameter (In.) 0.28
Maximum Cable Diameter (mm) 7.1
Minimum Cable Diameter (In.) 0.12
Minimum Cable Diameter (mm) 3
Maximum Operating Temperature (°C) 65
Maximum Operating Temperature (°F) 150
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Number of Labels 5000
Overall Length (In.) 1
Overall Length (mm) 25.4
Overall Width (In.) 0.75
Overall Width (mm) 19
Print-On Area Height (In.) 0.38
Print-On Area Height (mm) 9.6
Label Application Cable & Wire Marking
Label Property Flammability
