Panduit Signs, Labels & Identification, [S100X400FAL]; PAH529

Name: Panduit Signs, Labels & Identification, [S100X400FAL]; PAH529
Brand: Panduit
SKU: PAH529
Availability: InStock

Mã kho: PAH529

Mã nhà sản xuất: S100X400FAL

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Desktop Printer Labels: Panduit S100X400FAL

MÔ TẢ SẢN PHẨM

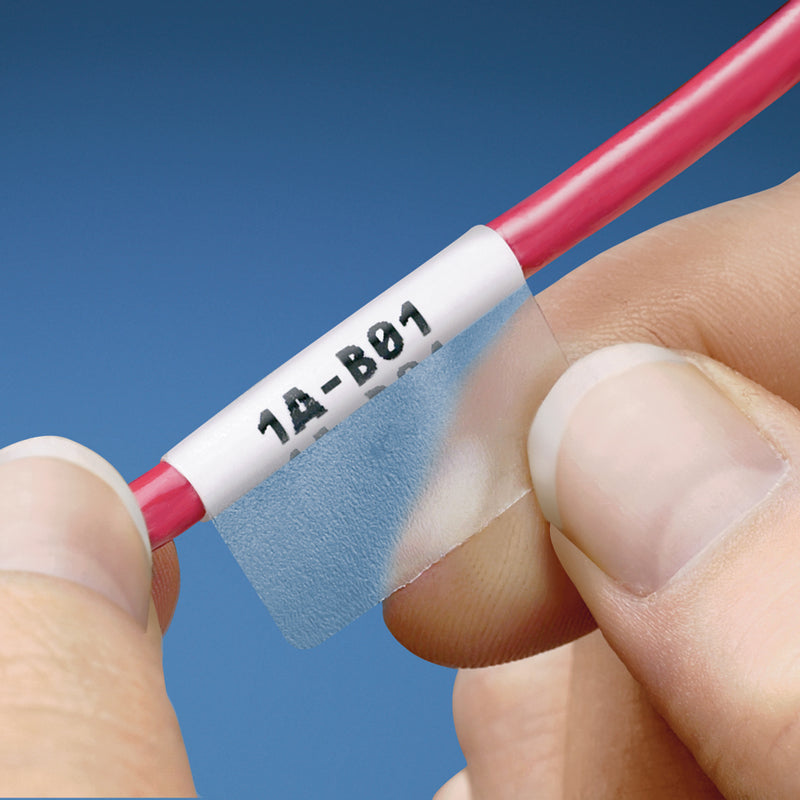

The laser self-laminating adhesive label is made of polyolefin is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheets with 7 labels per row and 14 labels per sheet. The label has a white colored print-on area 1.0" (25.4 mm) high for 2-1 AWG wires and a clear overlaminate. It is 1.0" wide and 4.0" long (

_THÔNG SỐ KỸ THUẬT:

Product Type	Self-Laminating Label
Color	White
Material	Polyolefin
Printer Type	Laser
Sheet Size	Letter
Standards Met	RoHS Compliant, UL Recognized: UL969, File # MH 14979
Sub Brand	Pan-Code®
Compatible Wire Gauge (AWG)	2 – 1
Maximum Cable Diameter (In.)	0.95
Maximum Cable Diameter (mm)	24.1
Minimum Cable Diameter (In.)	0.32
Minimum Cable Diameter (mm)	8.1
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
Minimum Operating Temperature (°C)	-17
Minimum Operating Temperature (°F)	0
Number of Labels	1000
Overall Length (In.)	4
Overall Length (mm)	101.6
Overall Width (In.)	1
Overall Width (mm)	25.4
Print-On Area Height (In.)	1
Print-On Area Height (mm)	25.4
Label Application	Cable & Wire Marking
Label Property	Halogen Free
