Panduit S100X400TAT-A

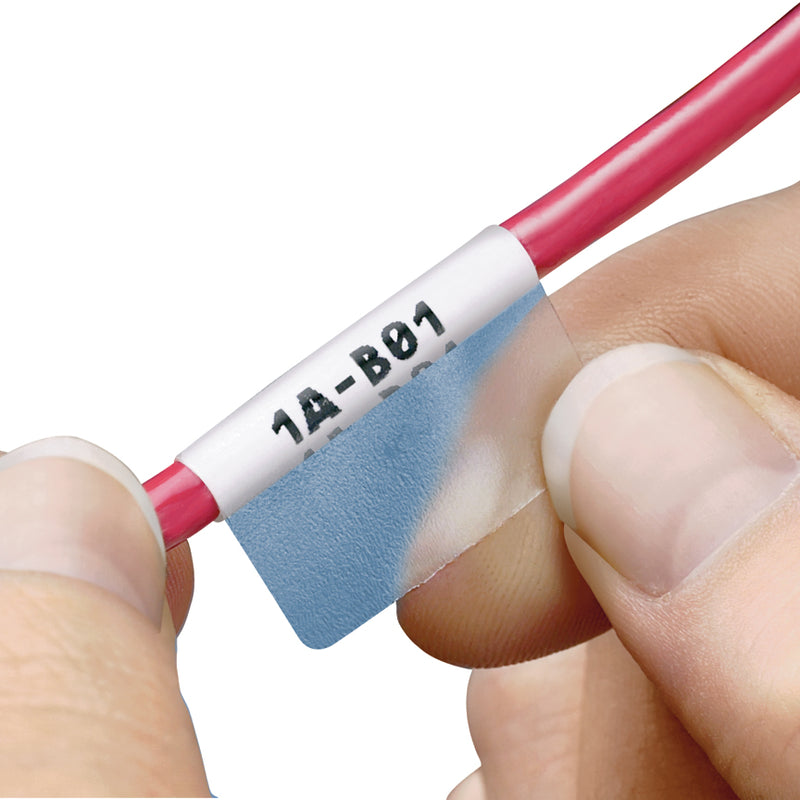

The thermal transfer self-laminating adhesive label is made of self-extinguishing polyvinylfluoride and is supplied on a roll with 4 labels per row. The label has a white colored print-on area 1.00" (25.4 mm) high for 2 - 1 AWG wires, and a clear overlami

Mã kho: PAO667
Tên nhà sản xuất: Panduit
9.550₫ - 9.550₫
9.550₫
9.550₫ - 9.550₫
9.550₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Signs Labels Identification / Labels Markers Printers / Desktop Printer Labels: Panduit S100X400TAT-A

MÔ TẢ SẢN PHẨM

The thermal transfer self-laminating adhesive label is made of self-extinguishing polyvinylfluoride and is supplied on a roll with 4 labels per row. The label has a white colored print-on area 1.00" (25.4 mm) high for 2 - 1 AWG wires, and a clear overlaminate. It is 1.00" wide and 4.00" long (25.4 x

_THÔNG SỐ KỸ THUẬT:

Product Type Self-Laminating Label
Color White
Material Tedlar
Printer Type Thermal Transfer
Standards Met RoHS Compliant
Sub Brand Pan-Code®
Compatible Wire Gauge (AWG) 2 – 1
Maximum Cable Diameter (In.) 0.95
Maximum Cable Diameter (mm) 24.1
Minimum Cable Diameter (In.) 0.32
Minimum Cable Diameter (mm) 8.1
Maximum Operating Temperature (°C) 135
Maximum Operating Temperature (°F) 275
Minimum Operating Temperature (°C) -54
Minimum Operating Temperature (°F) -65
Number of Labels 2500
Overall Length (In.) 4
Overall Length (mm) 101.6
Overall Width (In.) 1
Overall Width (mm) 25.4
Print-On Area Height (In.) 1
Print-On Area Height (mm) 25.4
Label Application Cable & Wire Marking
Label Property Flammability
