| Ordering Part number |
R912005387 |
| Type Code |
VFC5610-2K20-1P2-MNA-7P-NNNNN-NNNN |
| Serie |

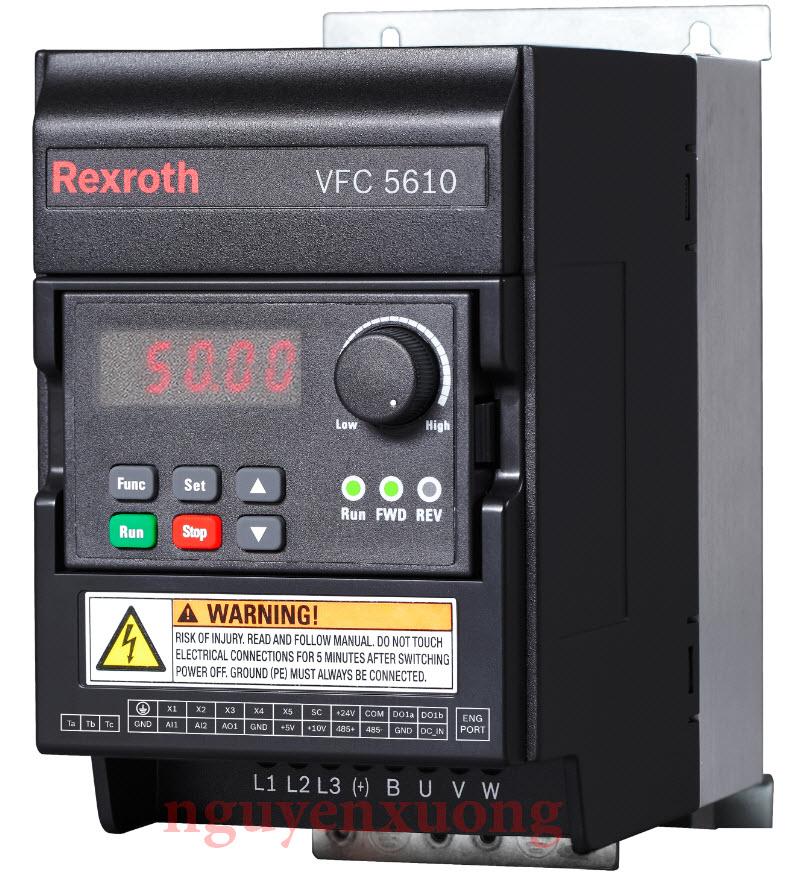

VFC5610 |
| Control Type |
Sensorless Vector, V/F |
| Input Voltage |
1 AC 200 - 240 V |
| Output Power (KW) |
2.2 |
| Output Current (A) |
10.1 |
| Dual-Rating ND/HD |
NO |
| Overload |
150 %, 60 s |
| Speed Range (Hz) |
0…400 |
| Speed Regulation |
'04:20 |
| Start-up Torque |
0.5Hz @ 200% |
| Control motor type |
Asynchronous Motor |
| Brake chopper |
Internal |
| Brake Resistor |
65Ω 300W . Brake Ratio 10%. For other ask Bosch Rexroth |
| Ventilation Fan |
Removable cooling Fan |
| Internal DC Reactor - Line Choke |
Without |
| Internal EMC |
Without |
| DC Bus Terminal |
Without |
| Cold Plate |
IP20 |
| Keypad |
Detachable 7 segment standard display (5 digits). Copy Unit |
| Firmware |
General firmware |
| Safety Torque Off Function (STO) |
Without |
| Analog Input - AI |
2 AI @ 0…10 V or 0…20 mA |
| Analog Output - AO |
2 AO @ 0…10 V or 0…20 mA |
| Digital Input - DI |
5 DI - NPN/PNP@ 24V 4mA / 12V 8mA
5th DI support pulse max 50kHz |
| Digital Output - DO |
1 DO @ 30VDC, 50mA or Pulse max 32kHz |
| Relay Ouput -RO (Ta, Tb, Tc) |
1 RO @ 250 VAC, 3A / 30VDC, 3A |
| Multi-Speed/Simple PLC |
YES-16 Stages |
| PID Control |
YES |
| Communication |
ModBus 485 |
| Optional I/O Card |
YES - 4DI, 1AI, 1AO, 1OC,1 relay output |
| Optional Relay Output Card |
YES - 4 RO, 250 VAC, 3 A/30VDC, 3 A |
| Optional Communication Card |
YES - PROFIBUS DP, CANopen |
| Optional Encoder Card |
Not Support |
| Size WxHxD (mm) |
120x231x175 |
| Weight (kg) |
2.6 |
| Mounting |
Wall or DIN, Side by Side |
| Rated Ambient Temperature |
40 ℃ |
| Certificate |
CE, EAC |
| Application |
Medium to big machine: industry mixer, CNC machine, extruding equipment, machine tool, food packing |
| Connect to PC |
YES-USB Type B |
