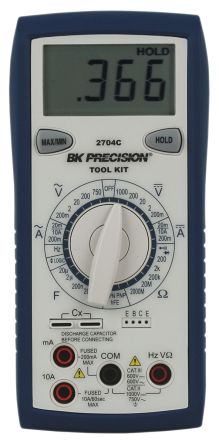

Manual Ranging Tool Kit DMM with Transis [BK2704C]; 192-4577
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Resistance Measurement | 2GΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Capacitance Measurement | 20µF |
| Maximum Frequency | 500Hz |
| Display Type | LCD |
| Model Number p | BK2704C |
| AC Current Measurement Resolution | 10µA ac |
| DC Current Measurement Resolution | 10µA dc |
| Resistance Measurement Resolution | 100mΩ |
| AC Voltage Measurement Resolution | 0.1mV ac |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Capacitance Measurement Resolution | 1pF |
| Best AC Current Accuracy | ±3% + 5 Digits |
| Minimum Operating Temperature | 0°C |
| Battery Life | 150 h |
| Weight | 285g |
| Height | 165mm |
| Width | 42.5mm |
| Length | 78mm |
| Best DC Current Accuracy | ±3% + 3 Digits |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 600 V, 750 V, 1000 V |
| Battery Type | 9V |
| Dimensions | 78 x 42.5 x 165mm |
| Best DC Voltage Accuracy | ±0.8% + 1 Digits |
| Best AC Voltage Accuracy | ±2% + 5 Digits |
| Maximum Operating Temperature | +50°C |
| Best Resistance Measurement Accuracy | ±5% + 10 Digits |
| Best Capacitance Measurement Accuracy | ±4% +10 Digits |
