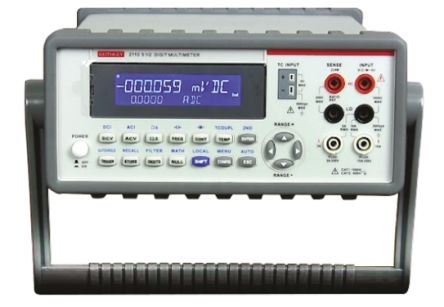

Keithley 2110-240-GPIB Bench Digital Multimeter, 10A ac 750V ac 10A dc 1000V dc [2110-GPIB-240]; 768-3390
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Capacitance Measurement | 100µF |
| Absolute Maximum Temperature Measurement | +2300°C |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance, Temperature |
| Maximum Frequency | 300kHz |
| Display Type | Digital |
| Model Number p | 2110-240-GPIB |
| AC Current Measurement Resolution | 100µA ac |
| DC Current Measurement Resolution | 100µA dc |
| DC Voltage Measurement Resolution | 10mV dc |
| AC Voltage Measurement Resolution | 10mV ac |
| Resistance Measurement Resolution | 1kΩ |
| Weight | 2.2kg |
| Safety Category Voltage | 600 V, 1000 V |
| Dimensions | 252.8 x 305 x 107mm |
| Width | 305mm |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | 0°C |
| Height | 107mm |
| Length | 252.8mm |
| Safety Category Level | CAT I, CAT II |
