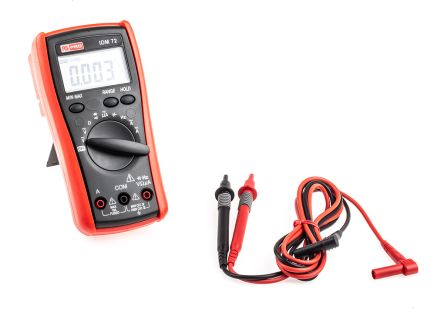

RS PRO IDM72 Handheld Digital Multimeter, 10A ac 750V ac 10A dc 1000V dc; 123-3242
Mã kho: 1233242
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Resistance Measurement | 60MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Capacitance Measurement | 6mF |
| True RMS | Yes |
| Maximum Frequency | 60MHz |
| Display Type | LCD |
| Model Number p | IDM72 |
| AC Current Measurement Resolution | 0.1µA ac |
| DC Current Measurement Resolution | 0.1µA dc |
| DC Voltage Measurement Resolution | 0.1mV dc |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Resistance Measurement Resolution | 100mΩ |
| Capacitance Measurement Resolution | 1pF |
| Best DC Current Accuracy | ±1% + 2 Digits |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | IEC 6F22, NEDA 1604, 9V |
| Best Resistance Measurement Accuracy | ±0.7% + 2 Digits |
| Maximum Operating Temperature | +50°C |
| Best AC Current Accuracy | ±1.5% + 5 Digits |
| Width | 44mm |
| Length | 82mm |
| Dimensions | 82 x 44 x 164mm |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Best AC Voltage Accuracy | ±0.9% + 5 Digits |
| Best Capacitance Measurement Accuracy | ±1.9% + 8 Digits |
| Minimum Operating Temperature | 0°C |
| Height | 164mm |
| Battery Life | 300 h |
| Weight | 400g |
| Safety Category Level | CAT III, CAT IV |
