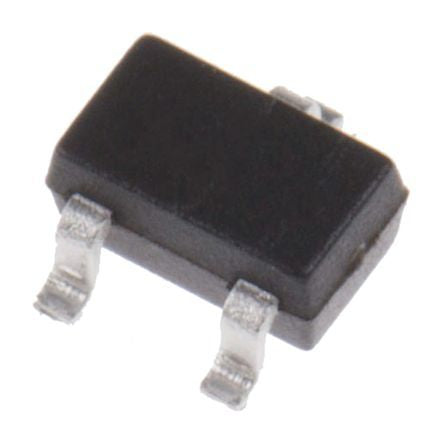

ROHM, DTC114GU3T106 NPN Digital Transistor, 100 mA 50 V, 3-Pin SOT-323 [DTC114GU3T106]; 183-4838
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Mounting Type | Surface Mount |
| Base-Emitter Resistor | 10kΩ |
| Package Type | SOT-323 |
| Pin Count | 3 |
| Minimum DC Current Gain | 30 |
| Maximum Power Dissipation | 200 mW |
| Transistor Configuration | Single |
| Maximum Collector Emitter Saturation Voltage | 300 mV |
| Maximum Emitter Base Voltage | 5 V |
| Configuration | Single |
| Height | 0.9mm |
| Length | 2.1mm |
| Maximum Operating Temperature | +150 °C |
| Width | 1.35mm |
| Dimensions | 2.1 x 1.35 x 0.9mm |
