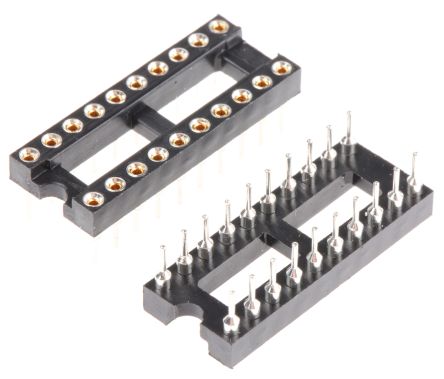

Winslow 2.54mm Pitch Vertical 20 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A [W30520TRC]; 813-159
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 20 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 5A |
| Orientation | Vertical |
| Length | 25.32mm |
| Width | 4.6mm |
| Depth | 10.14mm |
| Dimensions | 25.32 x 4.6 x 10.14mm |
| Contact Material | Beryllium Copper |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
| Housing Material | PBT |
